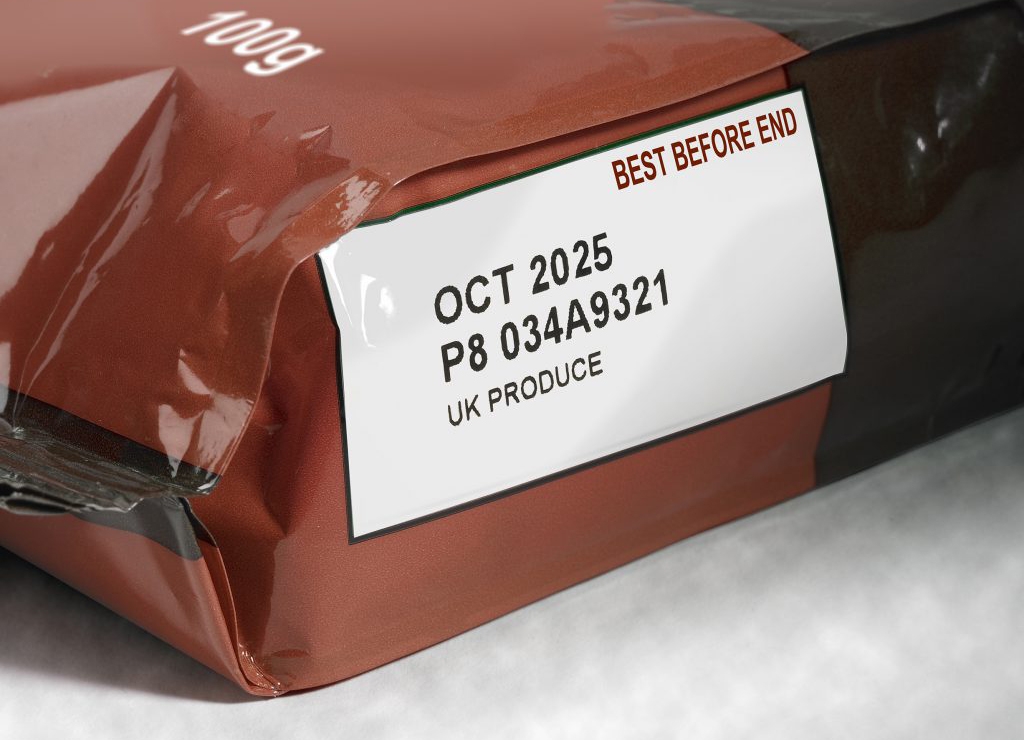

Flexible packaging and other flexible material printing at widths up to 107mm
Applications
» Operates without compressed air
» Easy to use colour touch screen - fewer errors and hassle-free operation
» Simple cassette system minimises errors during ribbon replacements
» Printhead characteristics: 53mm, 300dpi, 12 dots/mm
» Optimised ribbon usage with bi-directional stepper motors delivering more prints per ribbon
» Universal bracket system for integrating printer into intermittent and continuous motion packaging machinery.
» A simple printer designed for printing onto flexible materials
CONTACT US FOR OFFER
Printing Capabilities
Ribbon widths: 20mm to 110mm
Print area – intermittent motion mode: up to 107mm (W) x 75mm (L)
Print area – continuous motion mode: up to 107mm (W) x 300mm (L)
Maximum throughput: 700 prints per minute
Maximum ribbon length – 1200m
Print speed - intermittent motion mode: 10mm/sec to 800mm/sec
Print speed - continuous motion mode: 1mm/sec to 1000mm/sec
Ribbons: Range of types, colours, lengths and widths
Programming
Linx CLARiSOFT message design software
Barcodes
Fixed/variable text and numeric fields
Auto incrementing/ decrementing text, counters and barcodes
Basic shape drawing
Flexible date/time formats
Auto best before date calculation
3 levels of password protection
Multiple graphic formats
Physical characteristics
Clutchless bi-directional ribbon drive -e including ribbon consumption indicator and ribbon break/end of reel detection
8.0” color touch screen graphic user interface
